AJET CM25-3
AJ CM25-3 on galvanised fixed base

AJET CM25-3 Fog Cannon

AJ CM25-3

Solutions

Dust Suppression, Odour Control, Cooling

Product Highlights

  • 25 metre throw
  • 340 degrees automatic oscillation
  • Vertical tilt -10 to + 50 degrees
  • Onboard PLC Control
  • Remote control operation
  • Solutions: Dust Suppression, Cooling, Odour Neutralisation

Areas of Application:

Industrial and Civil Demolition
Industrial Facilities
Mine Sites
Quarries

AJ CM25-3 Mist Cannon Semi-Automatic Dust Suppression Systems

The ideal solution to effectively manage airborne dust particles fast and effectively, ensuring a safer workplace and environment.

CoolMist AJ CM25 range of semi-automatic fog cannons are built to suppress dust over small and medium-sized sites before it disperses into the environment. Designed for better efficiency and low water output the AJET® mist cannons powerful aero-dynamic fan projects fine atomised water droplets into the air covering a wide area and providing extremely effective dust suppression. The fine mist cloud engulfs and traps dust, removing it from the air and prevents it from drifting to other areas around and off site.

Mist Cannon technology helps Solve Dust Problems

AJET® CM 25-3 Series, with the capability of propelling a consistent and uniform mist plume up to 25 metres and oscillating 340 degrees, the mist cannons offer greater flexibility for dust suppression around the work site. The electronic PLC on board the machine manages the rotation and working angle of the cannon providing additional versatility. The solid, resistant and reliable steel structure allows operation in the harshest conditions.

Remote control operation

Equipped with radio control all machine functions can be adjusted remotely by the operator safely from a distance up to 100 metres away.

AJET® CM25-3 Mist Cannon Semi-automatic machine with PLC:

  • Electronic PLC with Touch Screen for total management of functions on board the machine
  • No water and Thermal failure alerts
  • 30 self-cleaning stainless-steel nozzles mounted on stainless steel nozzle crown
  • 20 > 180 µm (Droplet size may be adjusted according to the job)
  • Turbine fan with 11 blades, 3 kW/1500 rpm direct start motor
  • Turbine fan airflow 7000 m3/h
  • 400V 50Hz, power supply, watertight electrical box
  • Supporting structure is made of thick tubular box-type steel, electro welded, and hot-dip galvanised

Environmentally friendly Dust Control Solution

AJET® Mist Cannons are designed with the environment in mind. Supplied with a 10-bar low-pressure pump, or with the optional 60 -70 bar high-pressure pump dust suppression of finer dust particles is achieved using far less water than common water spray systems. Water residue over the surrounds is limited, preventing excess run-off and muddy conditions.

The filtration system also allows the unit to utilise recycled water. Low power consumption and low water use mean these dust suppression cannons are an environmentally friendly and economic dust control solution.

Several configurations area available to provide a customised dust control solution to your site, these include:

  • CM 25-3 Fixed Base on galvanised steel platform

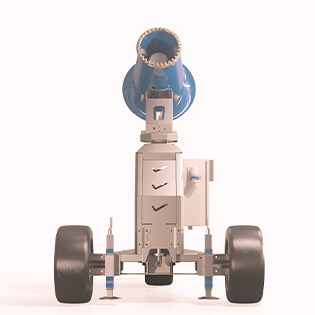

  • CM 25-3 Three-wheel trolley offers maximum maneuverability on site

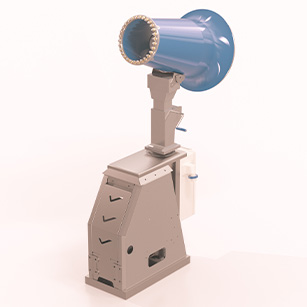

  • CM 25-3 Telescopic Pole - for small to medium work at height. The height of the cannon is adjusted manually

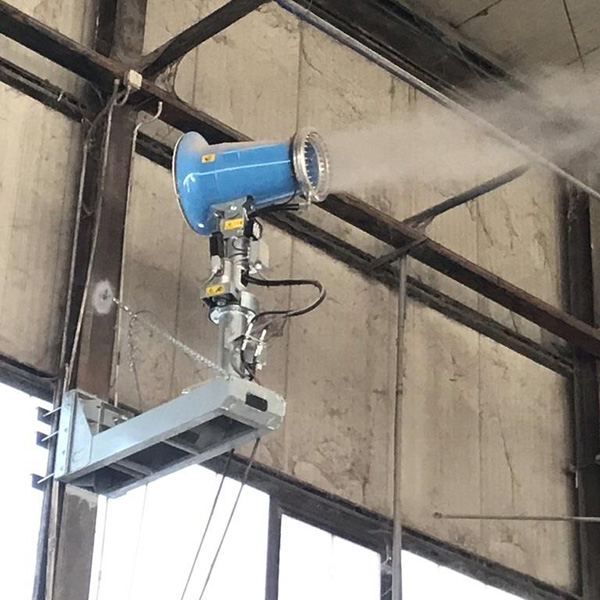

  • CM 25-3 Separate configuration - cannon and control panel are configured separately allowing the cannon to be mounted at heigh with ease of control at ground level

Technical Details
Maximum Throw (m): 25 linear metres
Oscillation: 340 degrees
Vertical Tilt (º): -10° > + 50° Manual by endless screw
Control Panel: Start/Stop
Tilt up/down
Oscillation left / right
Auto oscillation on / off
Operation Start/Stop Finish Time
Work/Pause Setting
Water Flow (L/min): 25 l/m with standard 10 bar pump, 8 l/m with optional 60 bar pump
Emergency Stop: Yes
