AJET CM30-5
AJ CM30-5
Solutions
Dust Suppression, Odour ControlProduct Highlights
- 30 metre throw
- 340 degree oscillation
- Vertical tilt -10 to 50 degrees
- Onboard PLC Control
- Remote control operation
- Various configurations available

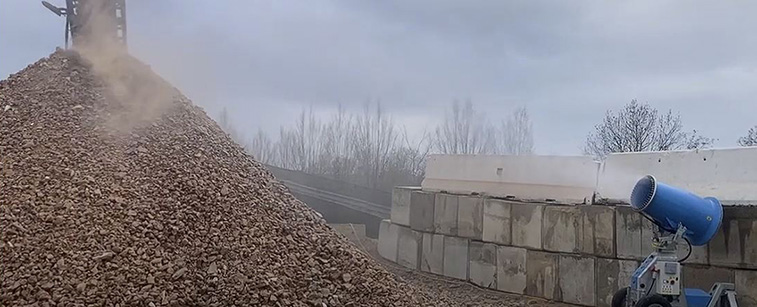

Areas of Application:
Construction SitesDemolition Sites
Industrial and Civil Demolition
Industrial Facilities
Mine Sites
Quarries
Recycling Facilities

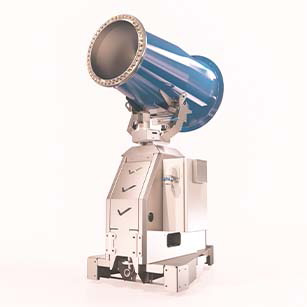

AJ CM30- Semi-Automatic Fog Cannon Dust Suppression Systems
AJET® CM30 Series, a fast and effective system for dust suppression and control. The innovative mist cannon range is built to suppress dust over large areas before it disperses in the environment.
Fitted with a 5-kW fan motor, the mist cannon propels a consistent and uniform mist plume up to 30 metres. Oscillating 340 degrees, the mist cannons offer greater flexibility for dust suppression around the work site.
AJET CM30-5 Semi-automatic Mist Cannon features:
- Electronic PLC with Touch Screen allows total management of functions on board the machine
- No water and Thermal failure alerts
- 40 self-cleaning stainless-steel nozzles mounted on stainless steel nozzle crown
- 20 > 180 µm (droplet size many be adjusted according to the type of work)
- Turbine fan with 11 geometry blades, 5.5kW motor / 1500 rpm direct start
- Turbine fan airflow 9,000 m3/h
- 400V, 50Hz power supply, watertight electrical box
- Supporting structure is made of thick tubular box-type steel, electro welded, and hot-dip galvanised.
Technical Details
| Maximum Throw (m): | 30 linear metres |
|---|---|
| Oscillation: | 340 degrees |
| Vertical Tilt (º): | -10 > +50 |
| Control Panel: |
Start/Stop Tilt up/down Oscillation left / right Operation Start/Stop Finish Time Work/Pause Setting |
| Water Flow (L/min): | 35 l/m with 10 bar pump, 8 l/m when fitted with 60 bar high pressure pump |
| Emergency Stop: | Yes |
