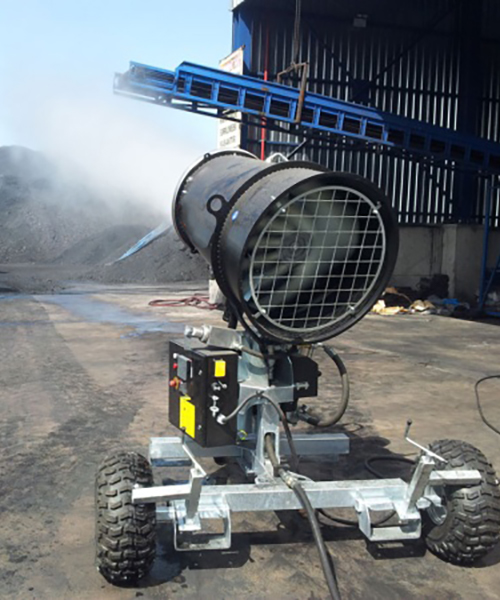

A-JET A60 Mist Cannon
7DZZZDQNJC
Solutions
Dust Suppression, Odour Control, CoolingProduct Highlights
- Industrial atomising system
- Standard oscillation 15, 30, 60 degrees
- Adjustable vertical tilt -10 to +50 degrees
- Throw 15 - 80 metres
- Low pressure or high pressure option
- Options include: 330 degree oscillation, Remote Control
- Solutions: Dust Suppression, Odour Neutralisation
Areas of Application:
Aggregate OperationsConstruction Sites
Demolition Sites
Mine Sites
Outdoor Areas
Quarries
Roadworks
Steel Mills
Steel works
Stock Piles
Tunneling
A-JET® Mist Cannon Dust Suppression Systems
A-JET® A60 mist cannon range is built to suppress dust over large areas before it disperses into the environment.
Designed for better efficiency and low water output the A-JET® mist cannons powerful aero-dynamic fan projects a plume of finely atomised water droplets (optimized to the right size) into the air encompassing a wide area and providing extremely effective dust suppression.
Mist Cannons control dust over large areas
A-JET® A Series units can propel mist from 15 metres (with VSD option), up to 80 linear metres. When fitted with 330 degree automatic oscillation, maximum ground coverage can be up to 11,000m² from a single location, ideal for all round dust control on industrial sites and mine sites.
The fine water mist generated by the units have a droplet size between 10-150 microns with a mean droplet size of 70 microns to provide the optimum conditions to capture and suppress dust particles. Finer droplet sizes can be achieved with the addition of a high-pressure misting pump.
Equipped with electric elevation, and automatic oscillation, mist can be distributed over large areas. The adjustable flow rate allows you to manage the volume of water to suit the application requirements and reduce water consumption.
The machines are equipped with a robust steel chassis with fork lift points for ease of transport on site. The wheeled trailer option allows greater mobility on the work site.
Remote control operation
All machine functions can be operated from a distance up to 100 metres away with the optional radio frequency remote control.
Environmentally friendly Dust Control Solution
A-JET® Mist Cannons are designed with the environment in mind and feature a two-stage-water-saving function and an optional db(A) reducing silencer. The filtration system also allows the unit to utilize recycled water. Low power consumption and far less water use than common water spray systems means these dust suppression cannons are an environmentally friendly and economical dust control solution.
Why are A-JET® Mist Cannons selected for dust control?
- Remote control operation
- Lower noise emissions
- Low water usage
- Ease of mobility
- Robust, modular and reliable
Mist cannon wide range of uses
Engineered and manufactured for industrial use, the A-JET A60 mist cannon is used to suppress a range of dust types ranging from coarse wood chip to mineral fines.
Discuss your dust control options with our expert team, call 1300 266 564.
Technical Details
| Maximum Throw (m): | 60-80 linear metres |
|---|---|
| Area Coverage (sqm): | 11,000 |
| Oscillation: | 15, 30, 60 |
| Vertical Tilt (º): | - 10 / +15 |
| Control Panel: |
Start/Stop Tilt up/down Oscillation left / right Auto oscillation on / off Oscillation area setting |
| Water Flow (L/min): | 20-40 (Higher water flow rates available on request) |
| Emergency Stop: | YES |
| Optional Extras: |
|
